recent projects

---

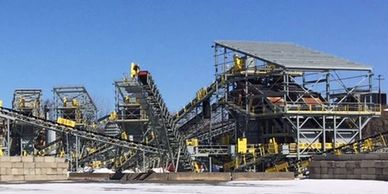

New custom designed secondary plant for Dolomite Group (CRH) at their limestone quarry in Walworth, NY. The plant is complete with three new Deister screens, a new Deister EMF pan feeder feeding a new Hazemag 1515 Secondary Impact Crusher, and a new Deister EMCO pan feeder feeding a HP300. Custom features of this plant include the ability to make 100% Crusher Run, a screen tower that can run wet or dry,  product blending on the fly, and abundant safety implementations and work access platforms.

Silvi Materials Enjoys Continued Success with EIW Sand Plant that Spans 25 Years. DIBBLE EQUIPMENT designed their new custom plant, complete with a new Deister wash screen, new steel support structure and new conveyors.

 Tuckahoe Sand and Gravel replaced their aging wash plant with two Eagle Iron Works Classifying Tanks and two double screw Fine Material Washers. Since installing the new Eagle wash plant, Tuckahoe Sand and Gravel has tripled their production.  In addition, DIBBLE EQUIPMENT also supplied a new Deister wash screen, the steel support structure and conveyors.

2,800 feet of 42" wide conveyor moving 700 TPH of 12” x 1 ¼” limestone from the quarry floor to the primary surge pile. The project also included a new Deister scalping screen, Deister vibrating pan feeder, Superior 150' Telestacker®, operator control tower, screen feed conveyor, and two transfer conveyors.

Plant layout and material flow designed by Ken Reitmeier and Rod Dibble for a 900 TPH Basalt quarry. The plant includes a gyratory primary, six cone crushers and five Deister screens.  The Deister screens were setup for long term storage in order to protect the bearings while sitting idle during this two year project.  Crusher centering feeders are utilized under large surge hoppers to center material in the cone while choke feeding in order to maximize cubical stone and liner wear.  Heavy duty flop gates built into the discharge chutes of each screen allow blending of products and re-crushing unwanted products on the fly.  Structures are designed to be enclosed at a future date to minimize dust and noise.

 Located 45 miles East of New York City, Coram Materials is a major supplier of concrete sand for the area.  Mike Vigliarolo Jr. shares how the Telestacker® Conveyor is part of Coram Materials' strategy to eliminate trucks and increase profits.

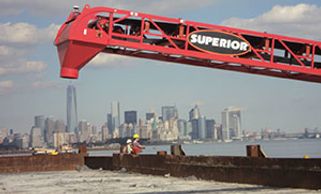

 Located just across the river from Manhattan, Gotham Aggregates helps supply concrete sand and other dry bulk materials to the New York City metro area by barge.  Rod Dibble of Dibble Equipment describes how they use a Telestacker® Conveyor to load two barges at the same time without moving the barges.

Sand and Gravel plant upgrade designed to eliminate clay in the final product while increasing the overall production of the plant and the finished product quality.  The plant features a Deister primary washing screen that feeds a McLanahan Log washer which feeds a Deister rinse/sizing screen.  The bottom deck throughs are collected and pumped via a McLanahan sump and pump to an existing classification tank.

Pit & Quarry - Rollin' On The River article on loading and unloading barges on the Hudson River with SUPERIOR TeleStackers supplied by DIBBLE EQUIPMENT.
